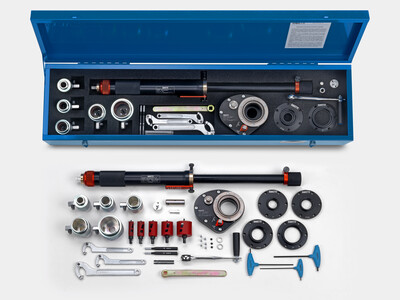

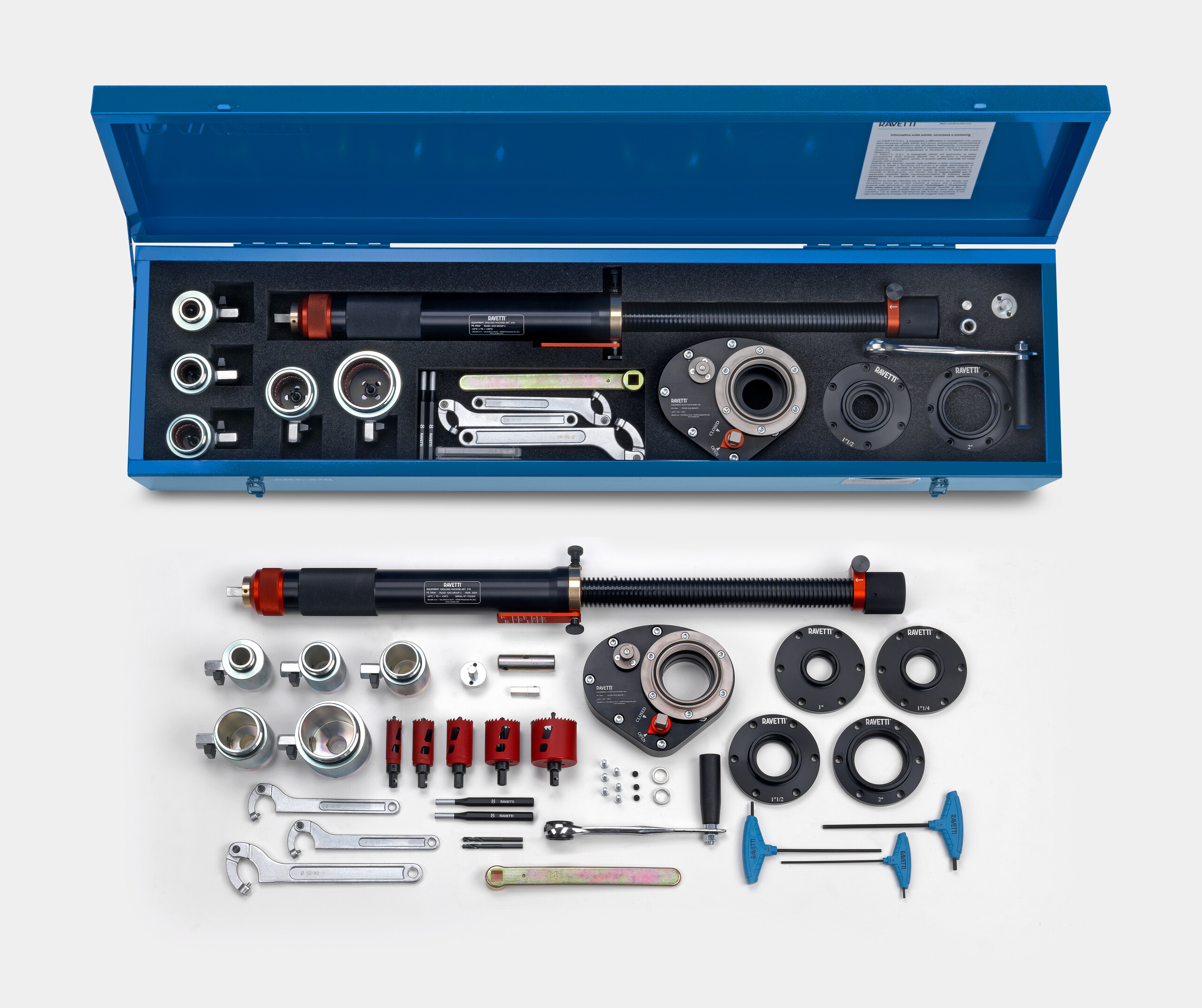

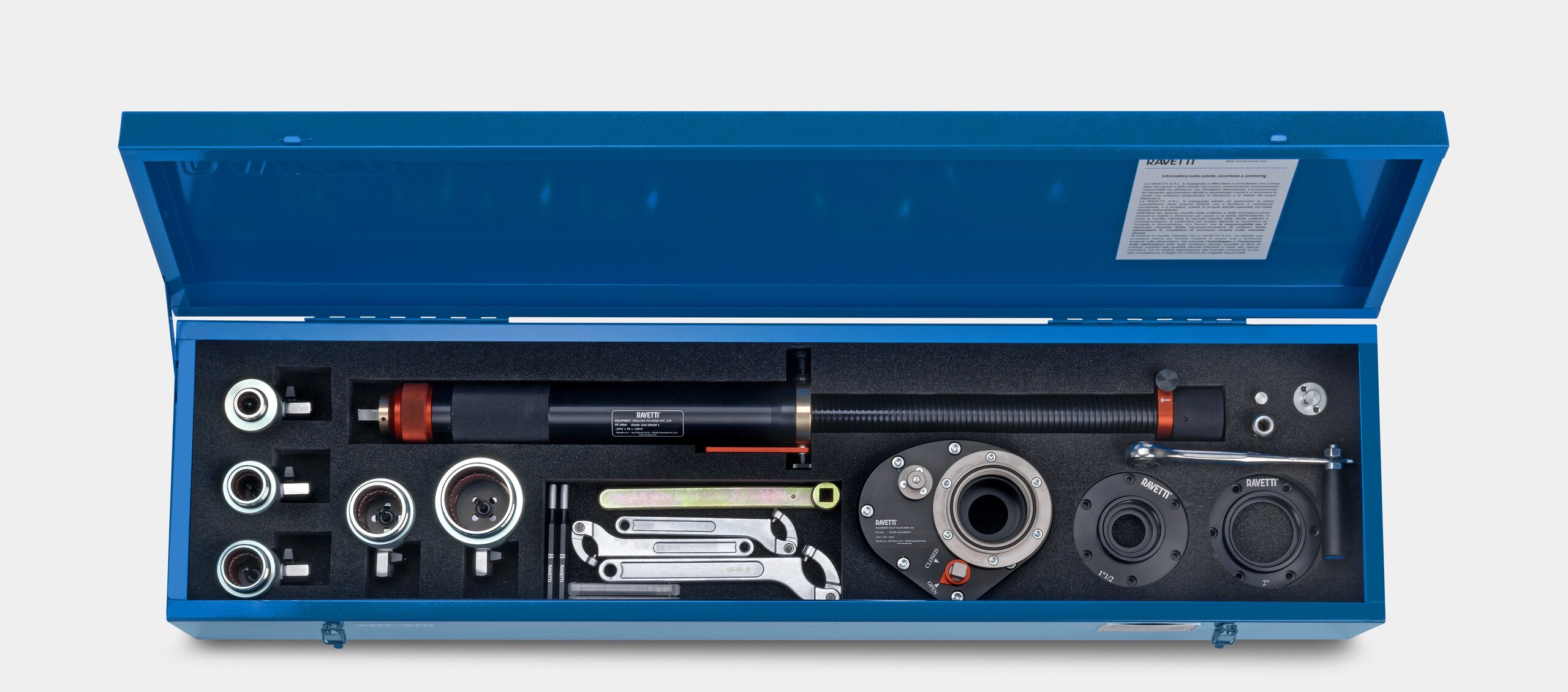

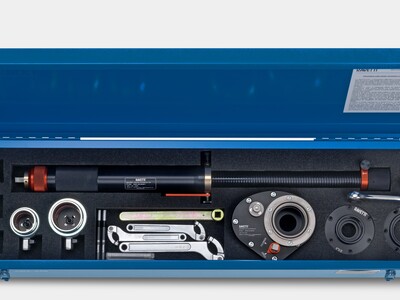

ART.370 DRILLING MACHINE WITH V/62 VALVE (312MM WORKING TRAVERSE)

1

Drilling system under charge through T-fittings with double threading, from DN 1' to DN 2', without gas leak.

  • For working branch lines through tees with double thread,from DN '1 to DN 2',without leakage of gas.
  • Complete with flat steel valve model V/62,in order to perform drilling operations and the introduction of the stopper in safety.
  • Max working pressure: 12 bar in standard version,
  • 25 bar in HP version
  • Steel construction protected by double zinc coating.
  • Automatic adjustment of drilling pressure.
  • Stroke: 370 mm.
  • Double safety limit switches.
  • Interchangeable vent valves on all armatures.
  • Drilling capacity in any position.
  • Rotation of the hole saw with ratchet wrench with handle or with pneumatic or hydraulic engine can be supplied on request.

Ravetti STOP/SYSTEM™

Maximum safety and reliability
Ravetti STOP/SYSTEM™ minimizes gas leakage and ensures safe operation even under high pressure.
Uninterrupted supply
Ravetti STOP/SYSTEM™ maintains the supply of gas, water, or oil even during maintenance.
Quick Installation
Requires minimal excavation, is easy to install, and reduces operational costs.
